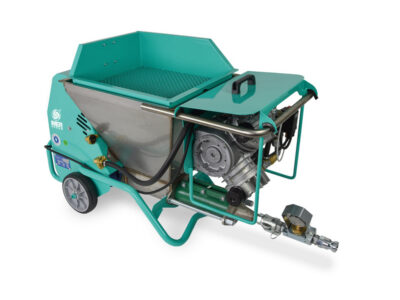

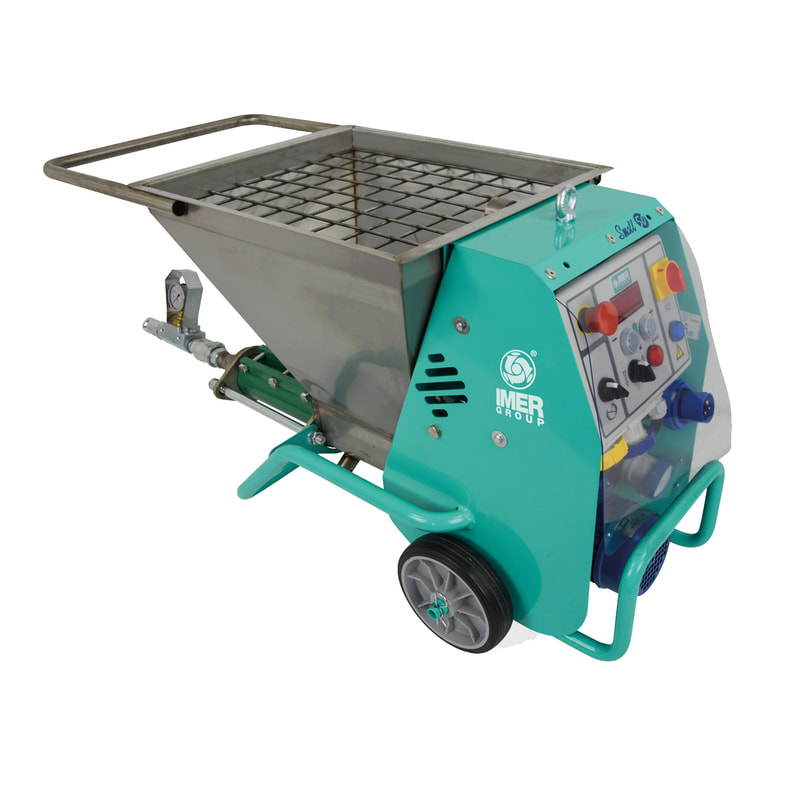

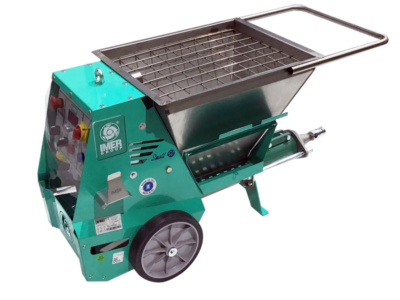

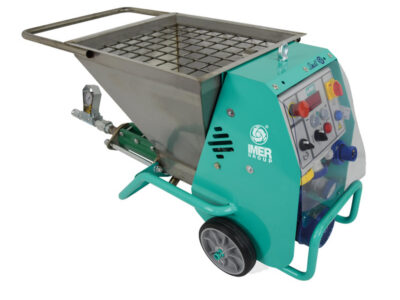

The Most Versatile Pump and Spray Machine on the Market

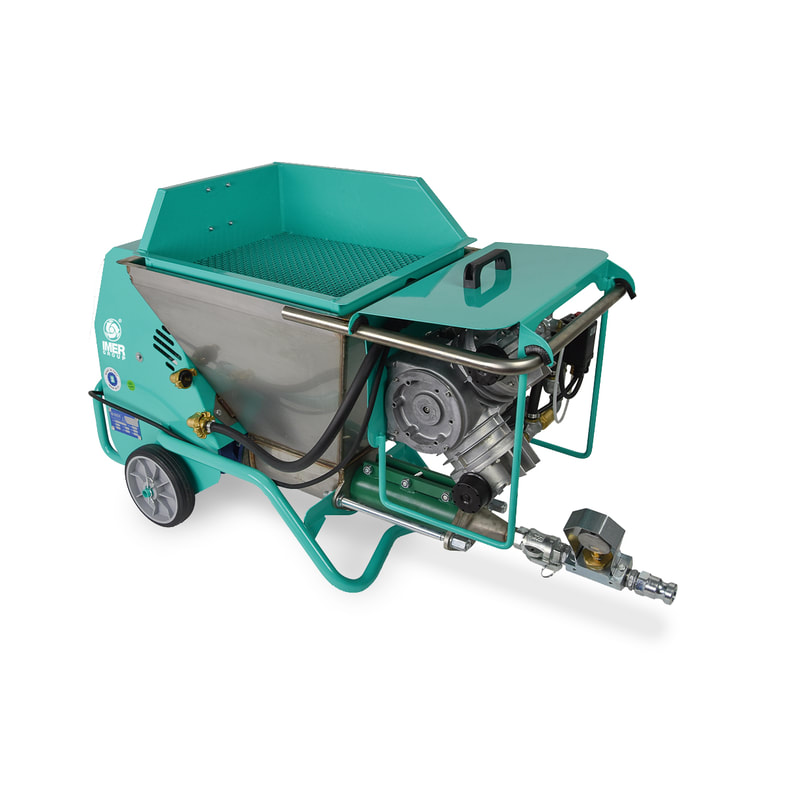

The Mighty Small 50 EVO & PLUS models are an easily portable multi-purpose pump and spray machine. You may configure the pump with many different accessories depending on the required application. Whether it is pumping grout into forms, on a bridge deck repair project, spraying fireproofing on a high-rise. EVO Model # 1106344 110V/60Hz, 1.75 HP
| Model # | 1106344 |
| Model # Plus | 1106345 |
| Power - Evo | 120 V |
| Power - Plus | 240 V |
| Max. Aggregate Size | 1/4 in |
| Hopper Capacity | 1.74 cu ft |
| Loading Height | 25.5 in |
| Dimensions w/l/h | 20.5 x 44 in x 25.5 in |
| Weight - EVO (Plus) | 90 lbs (100 lbs) |
Standard Equipment
- Rotor and stator D8 1.5
- Stainless steel hopper

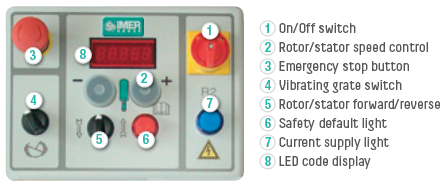

- Inverter driven control panel
- Electric remote control cable

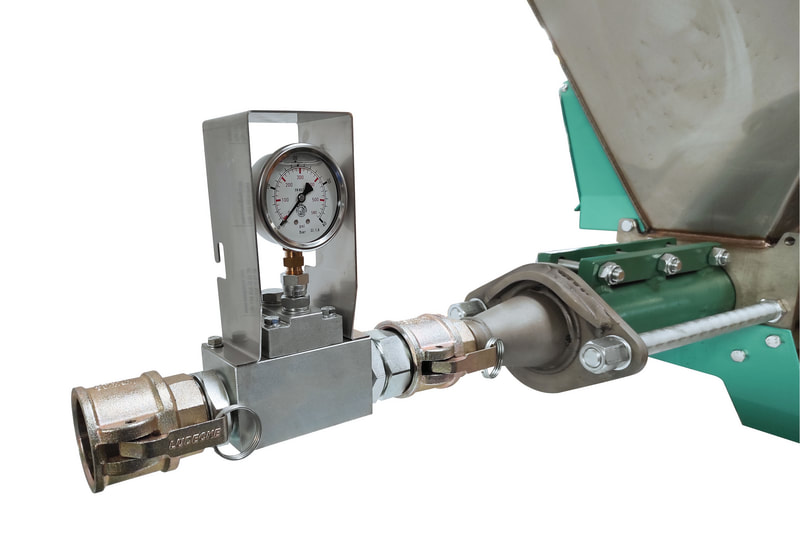

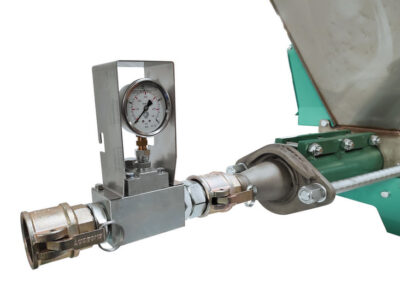

- Pressure gauge for material pressure
- Accessory toolbox
Optional Equipment
- Dual diaphragm compressor — Part # 1107546
- Mortar, stucco and fireproofing gun kit — Part # 1107005
- Paint and fine coatings gun kit — Part # 1107010
- Grout injection kit — Part # 1107006
- Tuck pointing gun kit — Part # 1107504
- 50' x 25mm material hose — Part # 1107525
- 33' x 25mm material hose — Part # 1107526
- 16' x 25mm material hose — Part # 1107527
- 5' overhead wand — Part # 1107549
- Vibrating hopper for tuckpointing — Part # 1107015
- Vibrating screen for bulk sand mixes — Part # 1107548
- Pipe hook for block, form and door jamb filling — Part # 1107570
- D5 - 2.5 Rotor — Part # 1107085
- D5 - 2.5 Stator — Part # 1107084
- Small 50 Plus Airless spray kit — Part # 1107669
