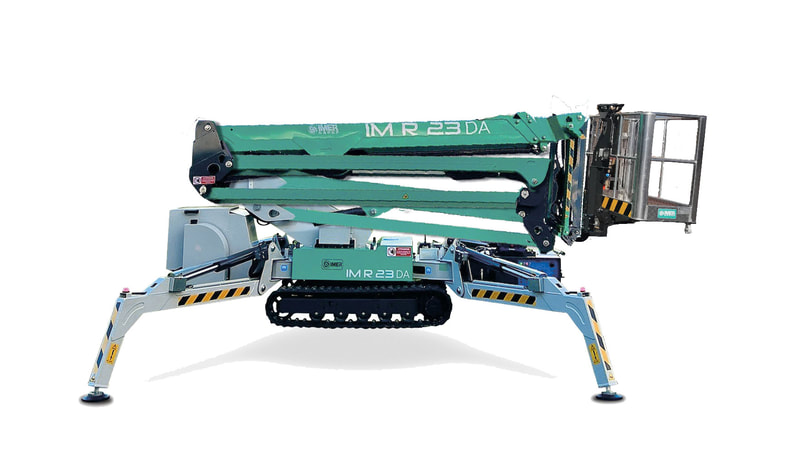

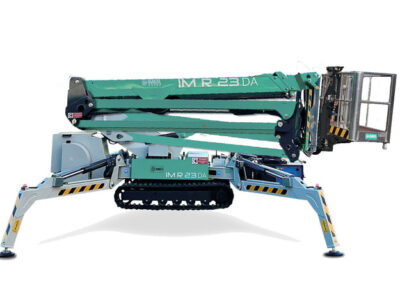

Articulated & Telescopic Lift with a Working Height of 75 Ft (23 m) Platform Height 68 Ft, Side outreach (ft / lb) 35' / 507 -- 39' / 308 The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.
Standard Equipment
- Automatic outrigger leveling system
- 355° rotation (not continuous)
- Emergency hand pump
- Cylinder holding valve
- Hour meter
- Load and tip detection sensor
- Load cell
- Hydraulic jib
- Rubber tracks
- 230V, 16 amp electric motor for indoor use
- Air / Water outlet in the platform basket
- 120V AC power to platform
- Removable wired control box
- Three travel speeds
- Wired control
- Remote battery charger
- Removable basket with 1 pin detach
- Overload sensor
- 120V battery charger
- Proportional controls with diagnostics
- GX800 Honda Engine
- Hydraulically adjustable track width
- 12V emergency pump
- 8" outrigger pads
- Wireless radio remote control box
- Hydraulic basket rotation — 124°
Optional Equipment
- Non-marking rubber tracks
- Working light in the platform basket
- 14" Oversized outrigger pads
- Yanmar 3TNV70
- IMERVIEW GPS Remote Monitor System
