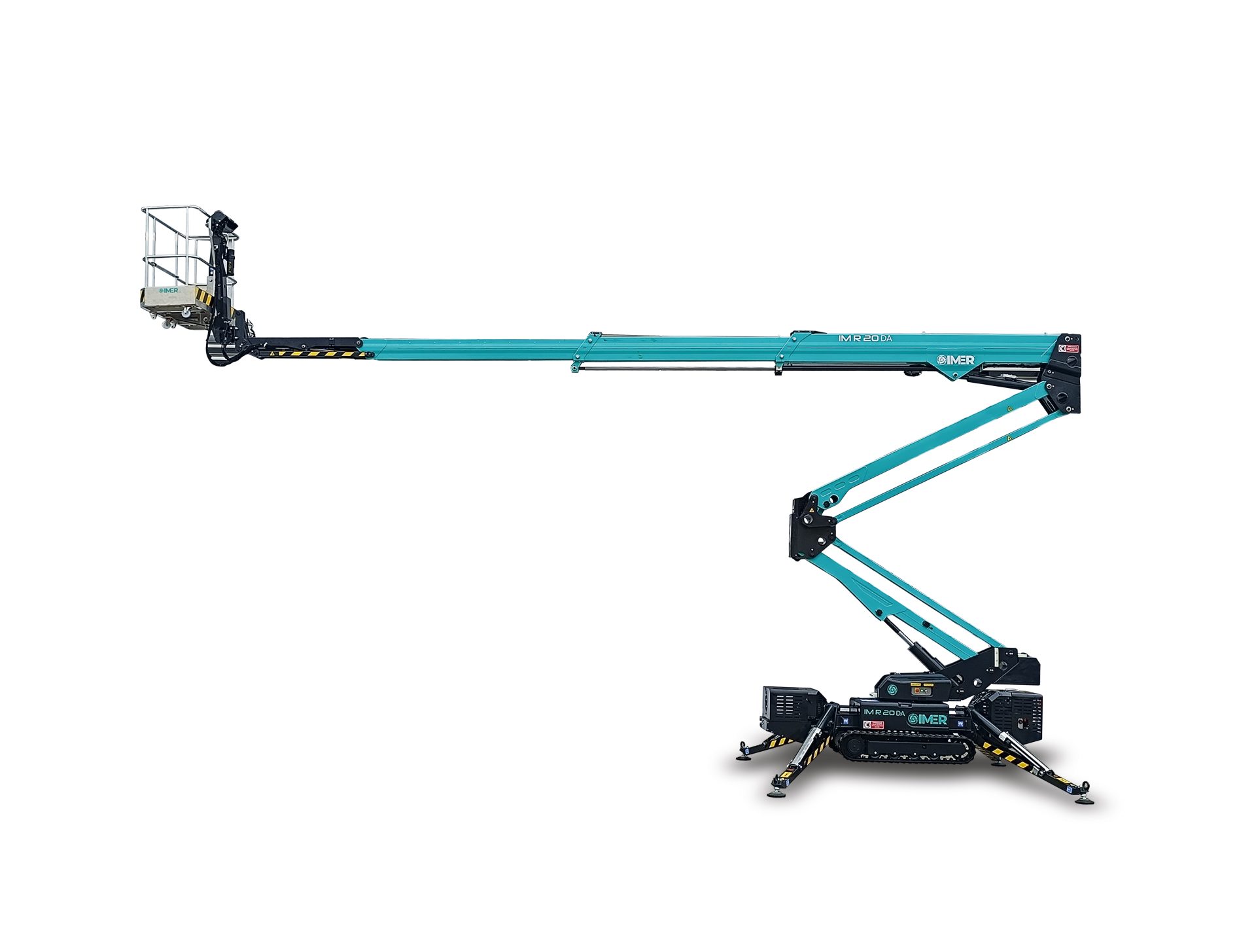

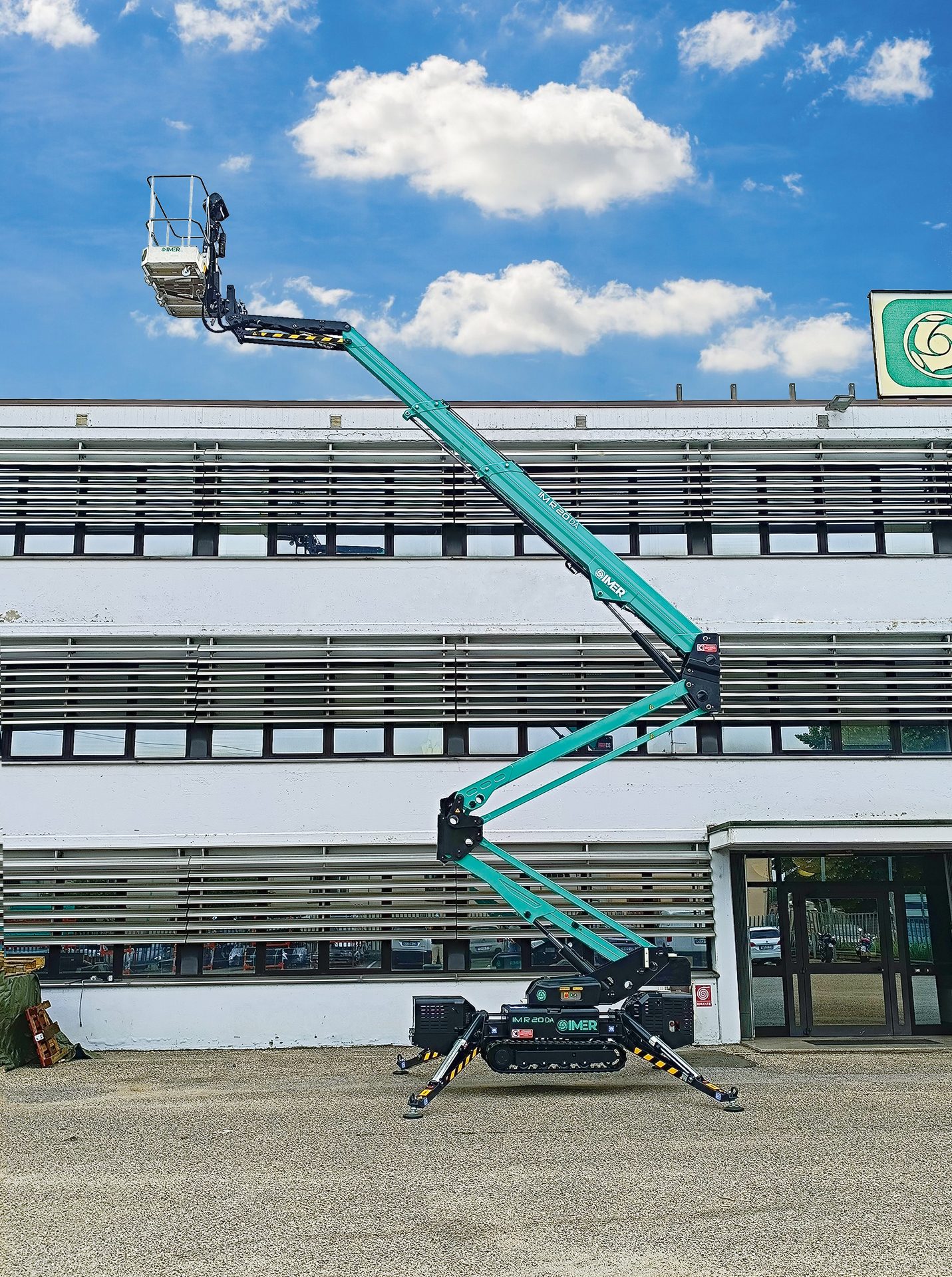

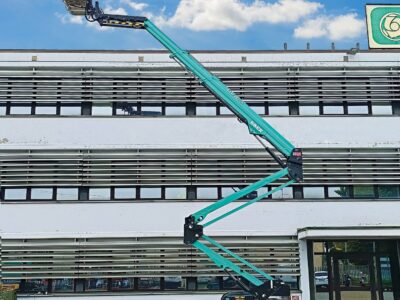

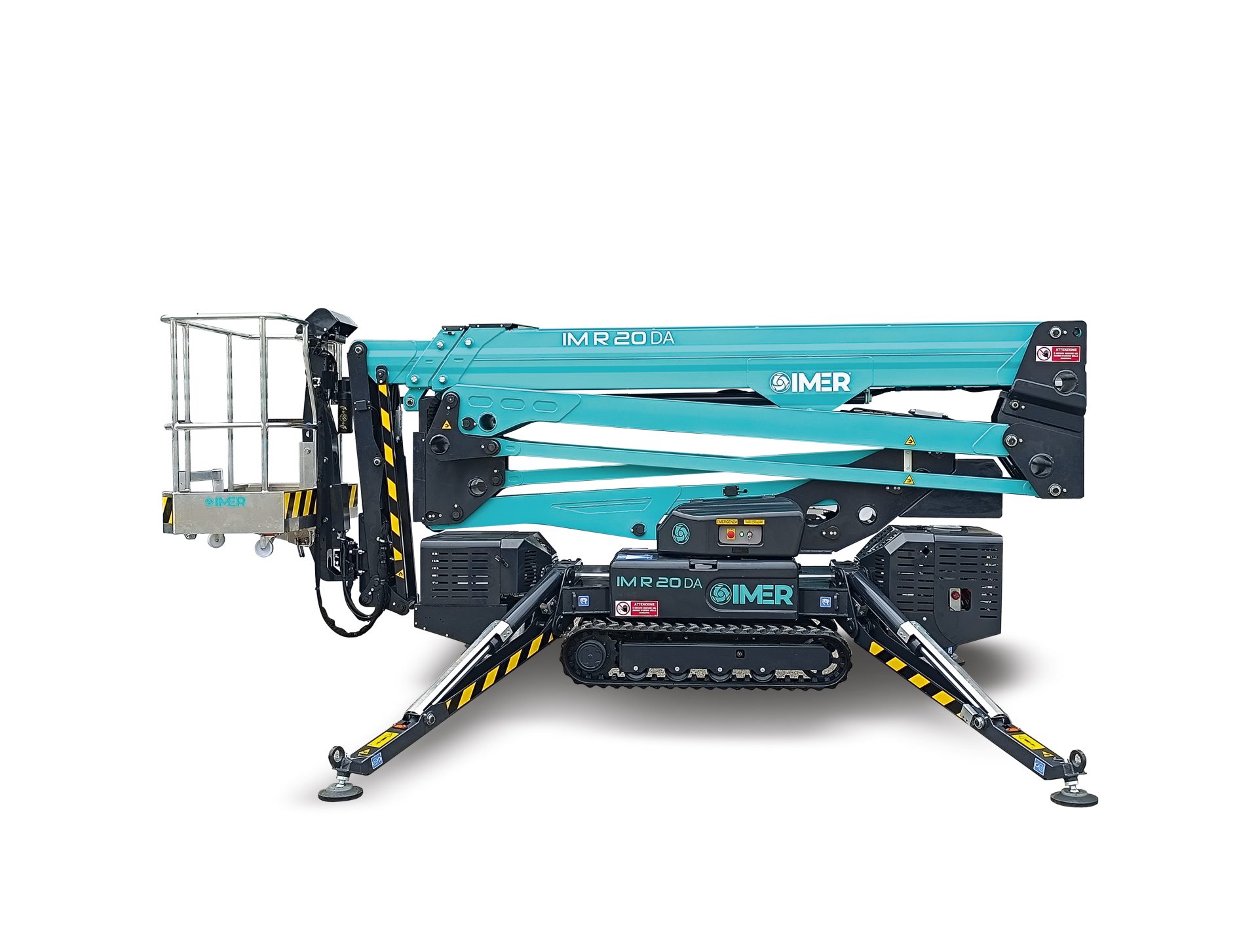

Spider Lift with double articulation boom. Max working height 20 m (65.6 ft). The IM R 20 DA features a new removable control box with a high resolution 4.3" display for easier operator interaction. Double articulation boom with active jib for high operability in all construction site conditions. Max side outreach of 10 m / 230 kg, with 8 m of Up & Over height. Available in petrol, diesel, lithium, and hybrid versions. Hydraulically adjustable track width for more stability and traction. Proportional and simultaneous electro-hydraulic controls for efficiency and safety. Automatic outrigger levelling, basket rotation ± 62°, and turret slewing 360° (not continuous).
| Working Height | 20 m (65.6 ft) |
| Platform Height | 18 m (59 ft) |
| Side Outreach | 10 m / 230 kg |
| Up & Over | 8 m (26.2 ft) |
| Turret Slewing | 360° (not continuous) |
| Basket Dimensions | 1.50 x 0.70 x 1.10 m |
| Basket Rotation | ± 62° |
| Overall Outrigger Footprint | 3.18 x 3.20 m |
| Max Load Capacity | 230 kg (507 lbs) |
| Driving Speed | 2 km/h (petrol/diesel), 1.8 km/h (lithium/hybrid) |
| Gradeability | 30% |
| Transport Length (without basket) | 5.10 m (4.40 m) |
| Transport Width (extended tracks) | 0.80 m (1.10 m) |
| Stowed Height (with outrigger pads) | 1.99 m (2.03 m) |
| Petrol Engine | Honda GX390 — 8.7 kW / 3600 rpm |
| Diesel Engine | Kubota Z602 — 12.5 kW / 3600 rpm |
| Electric Motor (Lithium/Hybrid) | 48V / 4.5 kW AC low voltage |
| Lithium Batteries | 48V / 110 Ah |
| Total Weight | 2900 kg (petrol), 2980 kg (diesel), 2950 kg (lithium), 3000 kg (hybrid) |
