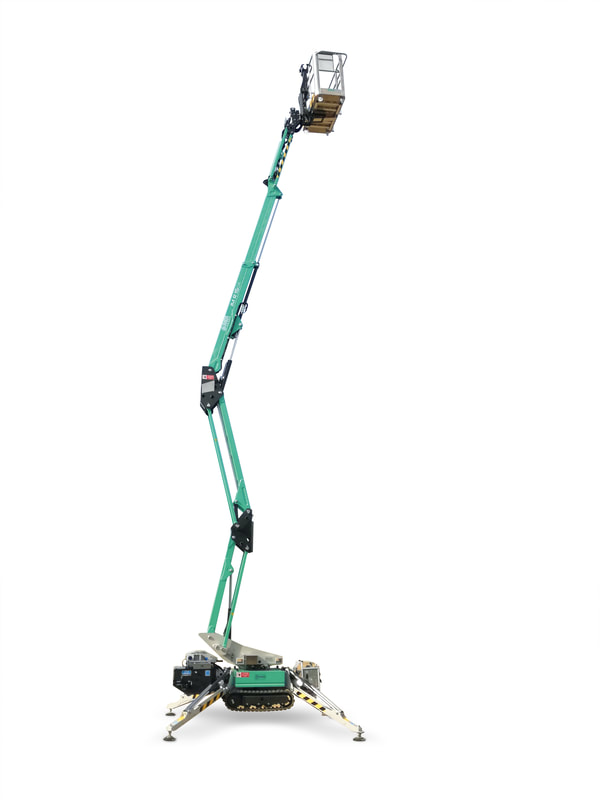

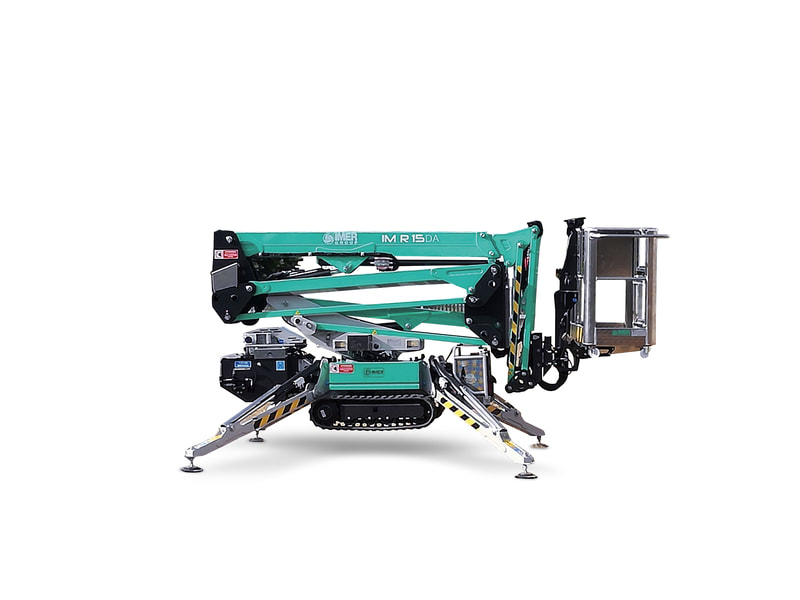

Telescopic Lift with a Working Height of 49'-6" Ft (15 m) Platform Height 43 Ft, Side outreach (ft / lb) 23' / 506 The IM R Series is an easy to operate, compact and light-weight solution for maximum clearance and versatility. The reduced size of the units and portable remote controls ensure maneuverability in tight spaces while providing added operator safety. In addition, track-driven capabilities offer maximum versatility for both outdoor and indoor applications.
Standard Equipment
- Automatic outrigger leveling system
- 355° rotation (non-continuous)
- Hydraulic basket rotation — 124°
- 120V, 15 amp electric motor for indoor use
- Air / Water outlet in the platform basket
- 120V AC power to platform
- Removable wireless control box
- Tether for wired connectivity
- Max 510 lbs in basket (two person capacity)
- Three travel speeds
- Emergency hand pump
- Cylinder holding valve
- Hour meter
- Load and tip detection sensor
- Load cell
- Hydraulic jib
- Rubber tracks
- Remote battery charger
- Removable basket with 1 pin detach
- Overload sensor
- 120V battery charger
- Honda iGX390 engine
- Yanmar L100N diesel engine
- Hydraulically adjustable track width
- Proportional controls with diagnostics
Optional Equipment
- Non-marking rubber tracks
- Working light in the platform basket
- 12V emergency pump
- 120V desktop remote charge
- Sliding, oversized outrigger shoes
- Oversized outrigger pads
- Double speed traction
- Aluminium basket (2' 11-1/2" x 2' 5")
- Aluminium basket (4' 7" x 2' 3-1/2")
- IMERVIEW GPS Remote Monitor System
