Continuous Operation Means Efficient and Effective Production
Continuous Operation Means Efficient and Effective Production

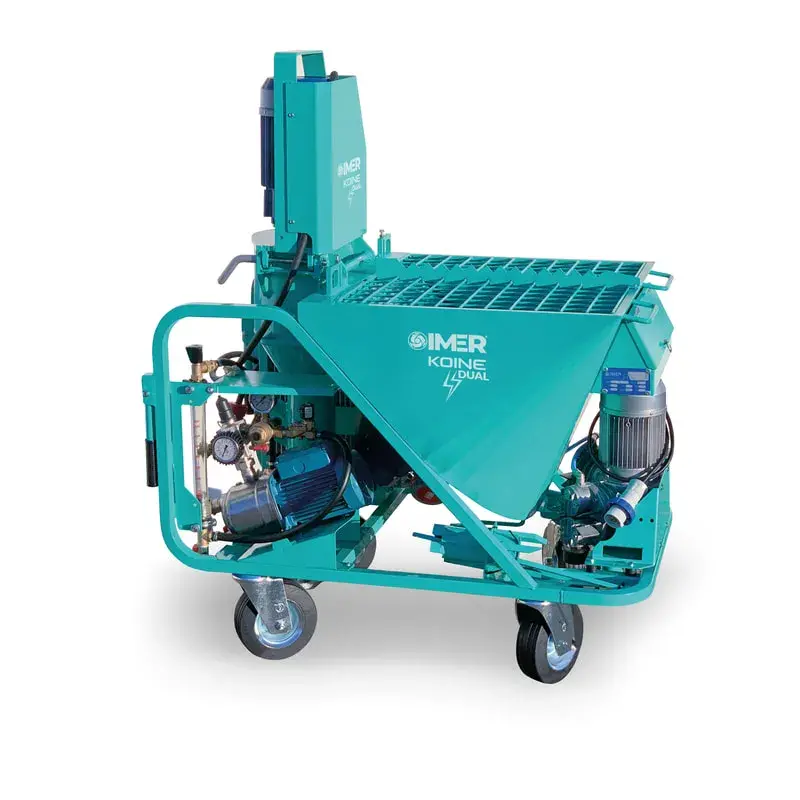

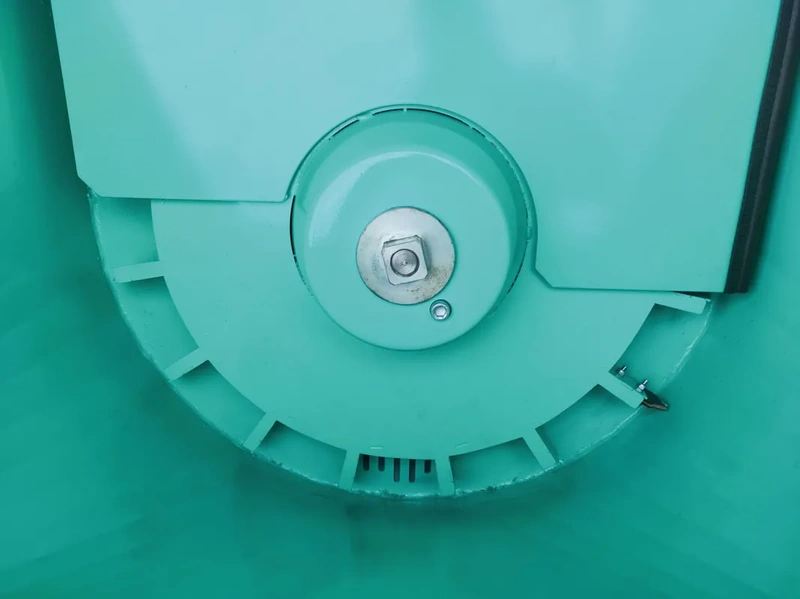

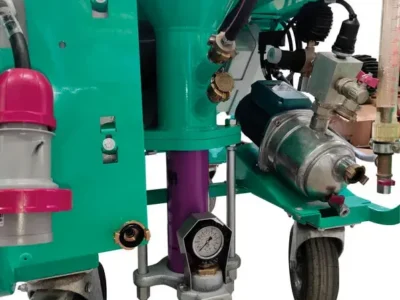

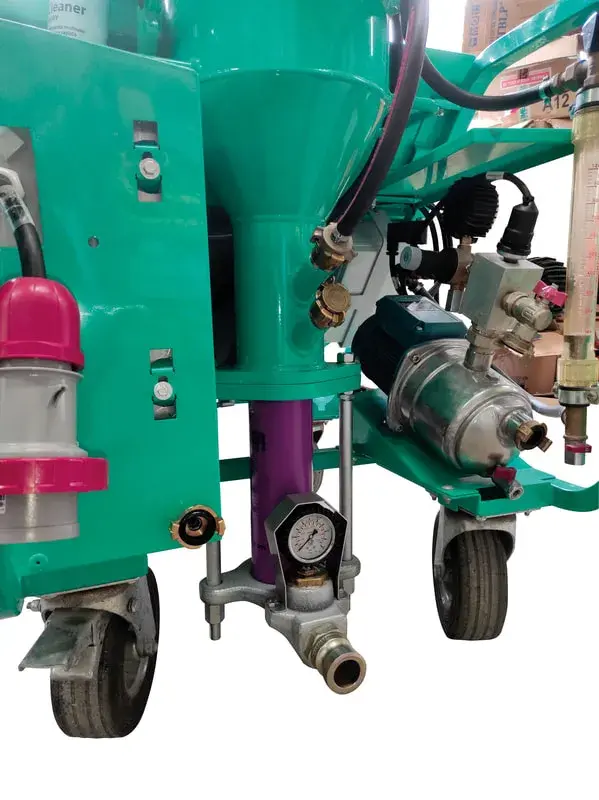

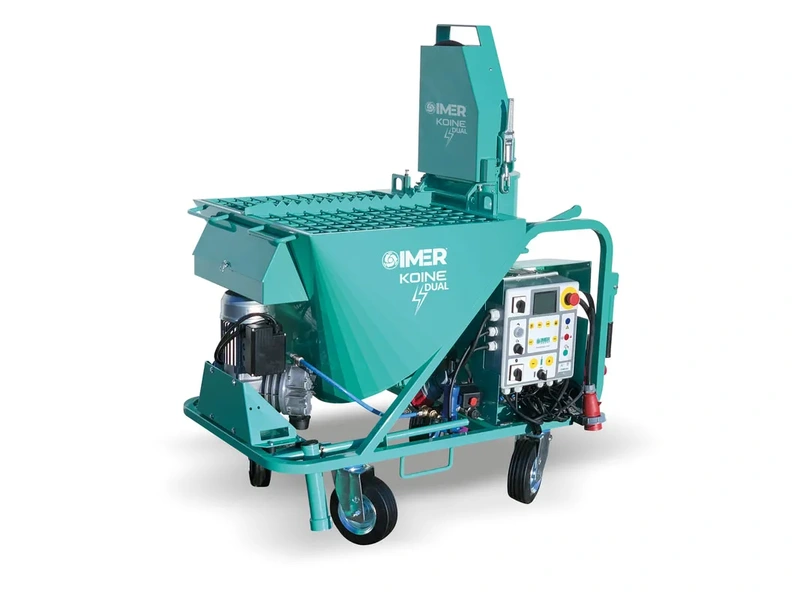

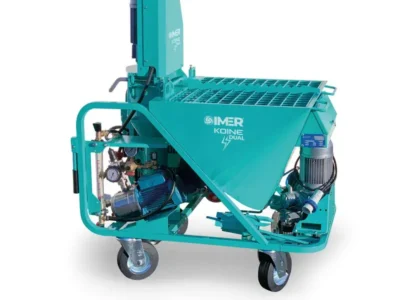

The Koine Dual continuous pumps make batching, mixing and pumping easy. Set the water level based on the material requirements and let the pump do the work. Break bags directly into the hopper as the feeding wheel delivers the dry material into the mixing chamber where metered water is introduced. A high shear mixing paddle spins up to 400 RPM on the Koine to whip the material up and discharges into the stator where the rotor creates the pressure to push the material into the hose. A rotor driven impeller ensures that the material is thoroughly mixed before it is placed. The Dual gets it’s name from having the ability to run on single phase or 3 phase. No more need to decide which one is right for you.
| Model # | 1106312 |
| Power Supply: 3Ø / 1Ø | 208 V / 240 V |
| Total Machine Power | 9 HP |
| Drive Motor | 7.5 HP |
| Feeding Wheel Motor | 1 HP |
| Water Pump | 1 HP |
| Material Flow Rate | Up to 140 cu ft / hr |
| Bags / hr (SLU) | Up to 300 |
| Loading Height | 36 in |
| Dimensions w/l/h | 29 in x 47 in x 62 in |
| Weight | 574 lbs |
| Speed | Bags per Hour | Water Level liters / hr |
|---|
R8 1.5
R7 2.5
R7 1.5Select material depth and enter square footage per bag to calculate volume per bag.
*These calculations are made based on theoretical data, always check consistency of material after setting water.
